Combo Dump Series
These combo trailers combine both the best of the dump trailer and enclosed cargo trailer worlds. Half enclosed trailers have become a huge benefit in the industry. Keeping valuable tools secured in the enclosure while hauling dirt or larger items in the hydraulic dump on the back. Our half enclosed trailers can be customized and are available with bumper or gooseneck configurations.
Trailer Features and Options

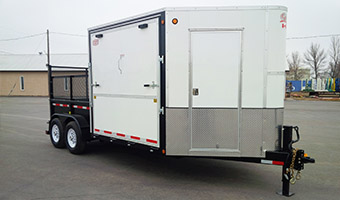

V-nose Front
Combo Hydraulic Dump

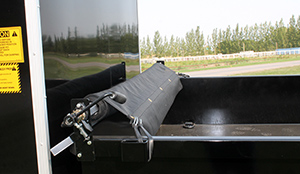

Roll Up Tarp

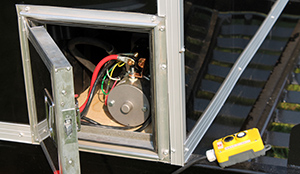

Access Door and Remote on Dump Trailer

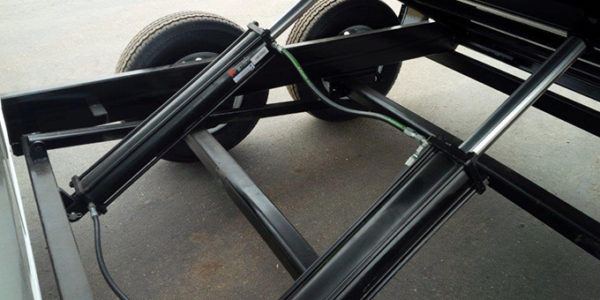

Hydraulic Cylinder Lift

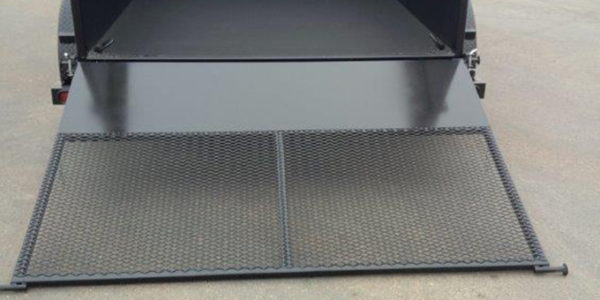

Rear Ramp End Gate

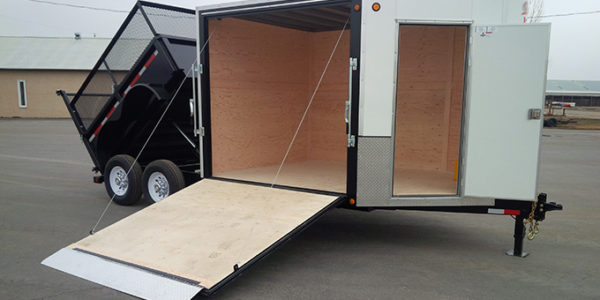

Passenger Side Ramp Door
Quality is never compromised when CJay builds a combo dump trailer. Our manufacturing process is top notch, resulting in a strong trailer that’s built to handle whatever you’re hauling and can hold up against our Canadian weather. The hydraulic system has a capacity to handle a load of up to 3.5 tons and with an easily accessible remote the dump box can be raised or lowered safely.
At CJay we use proven methods to prolong the life of your combo dump trailer, from the frame to the electrical. All electrical connections are soldered and heat shrink sealed to provide maximum connection life. All around, these half enclosed trailers are built to get the job done. Have questions about this combo dump trailer or any of the features and options? Contact us or request a quote below for more information.
Combination Trailer Specs
| Model | Overall Deck Length | Dump Box | Enclosed | Sides, front & Rear | Box Width | Hoist | Side Door | Interior Height | Axles | Brakes | Tires | Jacks | Coupler | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT-620-T70-HYD | 20′ | 14′ | 6′ | 18″ high | 80″ inside | 7 ton | 30″ wide | 83″ | Tandem 7000 lbs. rubber torsion | Electric | ST235/80R16 | 7000 lbs. drop leg | Adjustable 2 5/16″ | 4900 lbs. |
| CT-816-T70- HYD | 20′ | 8′ | 8′ | 24″ high | 82″ inside | 4″ double acting hydraulic lift cylinders | 30″ wide | 83″ | Tandem 7000 lbs. rubber torsion | Electric | ST235/80R16 | 12,000 lbs. drop leg | Adjustable 2 5/16″ | 5900 lbs. |
